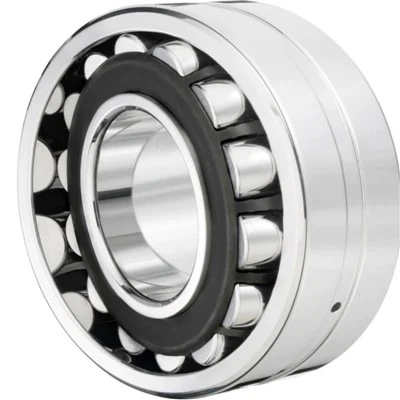

29236 Spherical Cov Menyuam Bearing
Loj: 180 * 250 * 42mm
Qhov hnyav: 6.187 kg
Qhov xwm txheej: Hauv Tshuag
Specification tuaj yeem muab tau
Lub sij hawm ua ntej: 3-6 hnub ua haujlwm
Contact: info@bearingmotion.com
|
29236 Spherical Cov Menyuam Bearing |
|
|
Hom |
Spherical Cov Menyuam Bearing |
|
Txoj kab uas hla (d) |
180 mm |
|
Sab nraud txoj kab uas hla (D) |
250 hli |
|
Qhov siab (T) |
42mm ib |
|
Basic dynamic load ntsuam xyuas, axial (Ca) |
485,000 N |
|
Basic static load ntsuam xyuas, axial(C0a) |
2,070,000 N |
|
Fatigue load txwv, axial(Cua) |
255,000 N |
|
Limiting ceev (nG) |
2, 650 1/min |
|
Siv ceev (nϑr) |
1, 350 1/min |
|
Pawg |
6.19 KWG |
Khoom Description
29236 spherical roller bearing yog cov kabmob zoo uas tau tsim los ua haujlwm nyob rau hauv hnyav axial thiab radial loads. Cov kabmob no feem ntau yog siv rau hauv kev lag luam machinery, xws li twj, compressors, thiab gearboxes. Nws tuaj yeem txhawb nqa kev kub ceev thiab kub yam tsis muaj kev cuam tshuam loj lossis puas tsuaj.
Lub 29236 spherical roller bearing yog tsim los xyuas kom meej kev ua haujlwm du thiab ua haujlwm ntev. Cov kabmob yog ua los ntawm cov ntaub ntawv zoo thiab yog precision engineered los muab kev ua tau zoo tshaj plaws. Cov kabmob no muaj ob kab ntawm symmetrical rollers uas tuaj yeem ua raws li qhov hnyav radial loads, nrog rau siab axial loads hauv ob qho tib si.
29236 spherical roller bearing muaj ob peb yam tseem ceeb uas ua rau nws zoo tagnrho rau ntau yam kev siv. Cov no suav nrog kev tsim lub tawb siab, ua kom zoo rau sab hauv geometry, thiab tshwj xeeb nto tiav. Cov yam ntxwv no ua haujlwm ua ke kom txo qis kev sib txhuam thiab txo qhov tsim hluav taws xob, ua rau lub neej ua haujlwm ntev dua thiab txhim kho kev ua haujlwm.
Zuag qhia tag nrho, 29236 spherical roller bearing yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas xav tau lub peev xwm thauj khoom siab, kev kub ceev, thiab kev pab lub neej ntev. Txawm hais tias koj tab tom nrhiav rau cov kabmob rau lub tshuab loj loj lossis cov khoom siv me me, cov kabmob no paub tseeb tias yuav muab kev ua tau zoo rau xyoo tom ntej.
Warehouse Paub meej
Peb lub tuam txhab muaj kev txaus siab nyob rau hauv cov lus nug uas nws kim heev ntawm 29236 Spherical Roller Bearings uas peb muaj nyob rau hauv Tshuag. Cov kabmob tshwj xeeb no yog ib qho tseem ceeb hauv ntau daim ntawv thov kev lag luam, thiab muaj cov khoom muag loj ntawm nws tso cai rau peb ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom raws sijhawm.
Cov neeg saib xyuas
Zaj Dab Neeg no
Nov yog cov lus tawm tswv yim tiag tiag los ntawm cov neeg siv khoom hauv Chile, uas pom peb hauv Google tshawb. Tawm ntawm kev txhawj xeeb rau thawj qhov kev koom tes, tus neeg siv khoom tau xaiv yuav 10 daim ua qauv ua ntej, uas yog cov ntaub ntawv los tso rau kev txiav txim tom qab tau txais cov qauv (cov ntsiab lus no tau tso cai los ntawm tus neeg siv khoom).
Yog li yog tias koj muaj kev txhawj xeeb txog cov khoom, peb kuj lees txais txoj kev txiav txim rau kev xeem, txhua yam lus nug, koj tuaj yeem tiv tauj: info@bearingmotion.com lossis nias tshuab "xa lus nug", peb yuav muaj pab pawg muag khoom zoo los teb koj cov lus .
Cov khoom lag luam
| 29334-E1-XL | 29248-E1-MB | 29284-E1-MB | 292/530-E1-MB |
| 29412-E1-XL | 29348-E1-XL | 29288-E1-MB | 292/560-E1-MB |
| 29413-E1-XL | 29448-E1-XL | 29292-E1-MB | 292/600-E1-MB |
| 29414-E1-XL | 29252-E1-MB | 29296-E1-MB | 292/630-E1-MB |
| 29415-E1-XL | 29352-E1-XL | 29368-E1-XL-MB | 292/670-E1-MB |
| 29416-E1-XL | 29452-E1-XL | 29372-E1-XL-MB | 292/710-E1-MB |
| 29317-E1-XL | 29256-E1-MB | 29472-E1-XL-MB | 292/750-E1-MB |
| 29417-E1-XL | 29356-E1-XL | 29376-E1-XL-MB | 294/750-E1-MB |
| 29318-E1-XL | 29456-E1-XL | 29476-E1-XL-MB | 292/800-E1-MB |
| 29418-E1-XL | 29260-E1-MB | 29380-E1-XL-MB | 294/800-E1-MB |
| 29320-E1-XL | 29360-E1-XL | 29480-E1-XL-MB | 292/850-E1-MB |
| 29420-E1-XL | 29460-E1-XL | 29384-E1-XL-MB | 293/850-E1-MB |
| 29322-E1-XL | 29264-E1-MB | 29484-E1-XL-MB | 294/850-E1-MB |
| 29422-E1-XL | 29364-E1-XL | 29388-E1-XL-MB | 294/900-E1-MB |
| 29324-E1-XL | 29464-E1-XL | 29488-E1-XL-MB | 292/950-E1-MB |
| 29424-E1-XL | 29268-E1-MB | 29392-E1-XL-MB | 294/950-E1-MB |
| 29326-E1-XL | 29468-E1-XL | 29492-E1-XL-MB | 292/1000-E1-MB |
| 29426-E1-XL | 29272-E1-MB | 29396-E1-XL-MB | 294/1000-E1-MB |
| 29328-E1-XL | 29276-E1-MB | 29496-E1-XL-MB | 292/1060-E1-MB |
| 29428-E1-XL | 29280-E1-MB | 292/500-E1-MB | 294/1060-E1-MB |
Cim npe nrov: 29236 spherical cov menyuam bearing, 29236 kheej kheej cov menyuam bearing lwm tus neeg
