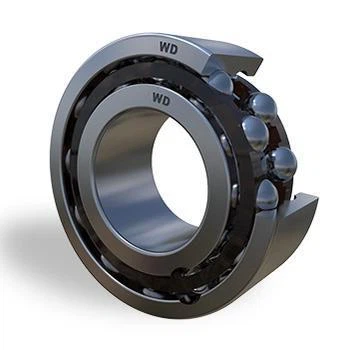

Muab ob npaug rau kab Deep Groove Pob Bearing

Kev tsim ntawm ob kab sib sib zog nqus groove pob bearings yog qhov tseem ceeb tib yam li ntawm ib kab sib sib zog nqus groove pob bearings. Qhov sib sib zog nqus groove pob ncej raceway ntxiv rau zoo heev haum nruab nrab ntawm raceway thiab steel pob. Ob chav kab sib sib zog nqus groove pob bearings tuaj yeem ua kom haum axial loads ua haujlwm hauv ob qho tib si ntxiv rau radial loads.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Qauv nab npawb ntawm Ob Kab Sib Nrauj Pob Bearings:

Hom	Qauv nab npawb	Specification (d × D × B)	Qhov hnyav (kg)
Ob chav kab sib sib zog nqus groove pob bearing	63308-2Z/YA	40×90×110	-
Ob chav kab sib sib zog nqus groove pob bearing	63300-2Z/YA	10×35×52	0.2556
Ob chav kab sib sib zog nqus groove pob bearing	63209-2Z/YA	45×90×110	-
Ob chav kab sib sib zog nqus groove pob bearing	63204-2Z/YA	20×52×80	-
Ob chav kab sib sib zog nqus groove pob bearing	63203-2Z/YA	17×47×70	-
Ob chav kab sib sib zog nqus groove pob bearing	63201-2Z/YA	12×35×51	-
Ob chav kab sib sib zog nqus groove pob bearing	63200-2Z/YA	10×32×51	0.2184
Ob chav kab sib sib zog nqus groove pob bearing	400WB-2RS	10×26×8/10	-
Ob chav kab sib sib zog nqus groove pob bearing	426X2WB-2RS/YA2	6×19×12/17	-
Ob chav kab sib sib zog nqus groove pob bearing	4001X2WB-2RS/YA2	12×28×18/24	-
Ob chav kab sib sib zog nqus groove pob bearing	400X2WB-2RS/YA2	10×26×18/24	-
Ob chav kab sib sib zog nqus groove pob bearing	408X2WB-2RS/YA2	8×22×17/22	-
Ob chav kab sib sib zog nqus groove pob bearing	406X3WB-2RS/YA2	8×22×10/11	-
Ob chav kab sib sib zog nqus groove pob bearing	406WB-2RS/YA2	6×16×3/14	-
Ob chav kab sib sib zog nqus groove pob bearing	610960	305×330×300	60.1
Ob chav kab sib sib zog nqus groove pob bearing	44908-2RS/P6	40×62×24	0.21
Ob chav kab sib sib zog nqus groove pob bearing	44907-2RS/P6	35×55×20	0.15
Ob chav kab sib sib zog nqus groove pob bearing	4404X3	20×70×24	0.564

Daim ntawv thov rau ob kab sib sib zog nqus Groove Pob Bearings:

Ob chav kab sib sib zog nqus groove pob bearings yog tsim rau siv nyob rau hauv ib tug bearing kev npaj qhov twg lub load peev xwm ntawm ib kab sib sib zog nqus groove pob bearings yog tsis txaus. Ob chav kab sib sib zog nqus groove pob bearings nrog tib lub sab nraud thiab sab hauv kab raws li qhov sib sib zog nqus groove pob bearings muaj qhov dav dav thiab muaj peev xwm ntau dua li ib kab sib sib zog nqus groove pob bearings hauv 62 thiab 63 series.
Centering yuam kev
Thaum muaj kev sib raug zoo ntawm cov nplhaib puab thiab sab nraud ntawm ob kab sib sib zog nqus groove pob bearings, ntxiv load yuav tshwm sim. Yog li nce lub pob steel thiab lub tawb kom dais lub nra, ua kom lub neej ua haujlwm ntawm cov kabmob. Yog li, qhov yuam kev Angle tso cai tsuas yog 2 arc feeb xwb. Ib qho yuam kev ntawm lub kaum sab xis loj dua yuav ua rau muaj suab nrov.
Cage
Ob chav kab sib sib zog nqus groove pob bearings yog haum nrog ob lub iav fiber reinforced nylon 66 tawb. Sib sib zog nqus groove pob bearings haum nrog nylon tawb tuaj yeem ua haujlwm ntawm qhov kub txog li 120 degree.
Yam tsawg kawg nkaus load
Yuav kom cov bearings khiav zoo, ob kab sib sib zog nqus groove pob bearings, zoo li tag nrho cov pob bearings thiab cov menyuam bearings, yuav tsum tau ris ib yam tsawg kawg nkaus load, tshwj xeeb tshaj yog nyob rau hauv kev kub ceev los yog siab acceleration, los yog nyob rau hauv lub ceev hloov ntawm load kev taw qhia. Nyob rau hauv cov xwm txheej no, lub zog inertia ntawm lub pob thiab lub tawb thiab kev sib txhuam hauv cov roj nplua nyeem yuav ua rau muaj kev cuam tshuam tsis zoo rau kev dov ntawm cov kabmob, thiab tej zaum yuav muaj qhov zawv zawg ntawm lub pob thiab cov kev sib tw uas muaj kev phom sij rau cov kabmob.

product-1200-275

Kev tsim kho tshuab thiab khoom siv

* Saib xyuas:

Nyob rau hauv cov ntaub ntawv ntawm pib ntawm qhov kub thiab txias los yog siab viscosity ntawm roj, yuav tsum tau ib tug loj yam tsawg load. Qhov hnyav ntawm cov kabmob, ua ke nrog rau sab nraud quab yuam, feem ntau yog ntau tshaj qhov tsawg kawg nkaus load yuav tsum tau. Yog hais tias qhov tsawg kawg nkaus load tsis tuaj yeem ncav cuag, cov kabmob yuav tsum raug ntxiv rau radial load.
Yog hais tias ob kab sib sib zog nqus groove pob bearings kom tiv taus cov ntshiab axial load, feem ntau tsis ntau tshaj 0.5Co. Ntau dhau axial load yuav txo tau lub neej ua haujlwm ntawm bearings.
