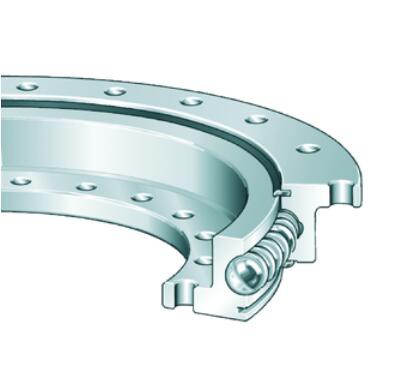

TSW 200844

Slewing nplhaib, Plaub Point tiv tauj bearing, tsis muaj iav hniavSlewing nplhaib, Plaub Point tiv tauj bearing, tsis muaj iav hniav

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

VLU200844

Main Dimensions & Performance Data

d_i	7 34mm	Inner diameter puab nplhaib
	0 hli	Sab hauv txoj kab uas hla sab hauv lub nplhaib qis kam rau ua
	0.6 hli	Sab hauv kab sab hauv lub nplhaib sab sauv kam rau ua
H	56mm ua	Qhov siab
D_a	9 48mm	Sab nraud txoj kab uas hla
	-0.6 hli	Sab nraud txoj kab uas hla qis dua
	0 hli	Sab nraud txoj kab uas hla sab sauv kam rau ua
T	12 mm	Length centering txheej nplhaib
t	12 mm	Length centering puab nplhaib
h_a	44.5mm ib	Dav sab nraud
h_i	44.5mm ib	Dav sab hauv nplhaib
≈m	48.01kg ib	Qhov hnyav

Qhov ntev

D_i	8 45,5mm	Sab hauv kab sab nraud
	0.6 hli	Sab hauv txoj kab uas hla lub nplhaib sab sauv kam rau ua
	0 hli	Sab hauv txoj kab uas hla sab nrauv lub nplhaib qis dua kam rau ua
d_a	8 42,5mm	Sab nraud txoj kab uas hla puab nplhaib
	0 hli	Sab nraud txoj kab uas hla puab lub nplhaib sab sauv kam rau ua
	-0.6 hli	Sab nraud txoj kab uas hla sab hauv lub nplhaib qis kam rau ua
d_B	18 mm	Kho bore
L_a	9 20mm	Pitchcircle txoj kab uas hla kho qhov lub nplhaib sab nraud
n_a	14	Tus naj npawb ntawm kho qhov nyob rau hauv lub nplhaib sab nraud
L_i	762mm ua	Pitchcircle txoj kab uas hla kho qhov hauv lub nplhaib
n_i	18	Tus naj npawb ntawm kho qhov nyob rau hauv lub nplhaib puab
F_{r zul}	109,200 N	Max. radial load kho screws (kev sib txhuam xauv)
h_A	20 mm	Ntiv nplhaib hla ntu

Qhov kub thiab txias

T_min	-25 degree	Ua haujlwm kub min.
T_max	80 degree	Ua haujlwm kub max.

Kev suav lej

C_a	180,000 N	Basic dynamic load ntsuam xyuas, axial
C_0a	600,000 N	Basic static load ntsuam xyuas, axial
C_r	163,000 N	Basic dynamic load ntsuam xyuas, radial (rau radial load nkaus xwb)
C_0r	224,000 N	Basic static load ntsuam xyuas, radial (rau radial load nkaus xwb)

Slewing nplhaib bearings, tseem hu ua turntable bearings, yog cov tshwj xeeb teb bearings tsim los kom haum rau hnyav loads thaum tso cai rau du rotation ntawm ib tug ruaj axis. Ib qho ntawm lawv cov yam ntxwv txhais tau yog lawv txoj kab uas hla loj, uas ua rau lawv txhawb nqa ntau yam radial, axial, thiab lub sijhawm thauj khoom ib txhij. Feem ntau tsim los ntawm cov hlau zoo, cov kabmob no muaj cov qauv tsim tshwj xeeb uas feem ntau suav nrog cov khoom sib xws, kev sib tw, thiab kev sib khi. Qhov no ua rau lawv tshwj xeeb tshaj yog haum rau cov ntawv thov uas xav tau siab precision thiab durability. Tsis tas li ntawd, slewing nplhaib bearings tuaj yeem hloov kho rau ntau qhov ntau thiab tsawg thiab kev teeb tsa kom tau raws li cov kev xav tau tshwj xeeb engineering, ua kom pom kev ua haujlwm zoo nyob rau hauv ntau yam kev ua haujlwm.

Qhov zoo ntawm slewing nplhaib bearings muaj ntau heev, feem ntau lawv muaj peev xwm muab cov lus tsa suab txhim khu kev qha hauv qhov xav tau ib puag ncig. Lawv txoj kev tsim kho muaj zog tso cai rau lawv tiv taus qhov kub thiab txias, ua rau lawv zoo tagnrho rau cov tshuab hnyav, cranes, thiab excavators. Tsis tas li ntawd, tus tsim ntawm slewing rings enables txo kev sib txhuam thaum lub sij hawm ua hauj lwm, uas ua rau kom efficiency thiab prolongs lub lifespan ntawm cov khoom. Kev sib koom ua ke ntawm cov iav ncaj qha rau hauv cov kabmob tshem tawm qhov xav tau ntxiv cov iav hauv kev sib dhos, txo qhov hnyav tag nrho thiab ua kom yooj yim rau kev tsim engineering. Tsis tas li ntawd, lawv cov kev tswj xyuas qis ua rau txo qis kev ua haujlwm, uas yog qhov txiaj ntsig tseem ceeb rau kev lag luam uas vam khom rau kev ua haujlwm tas mus li.

Slewing nplhaib bearings nrhiav kev siv dav hauv ntau qhov kev lag luam, ua kom pom lawv cov khoom siv tau zoo thiab ua haujlwm tau zoo. Hauv kev tsim kho, lawv tau siv hauv cranes thiab excavators kom du thiab precision-tswj txav. Nyob rau hauv cov cua zog sector, slewing rings ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm ntawm cov cua turbines, ua kom cov kev hloov pauv tsim nyog los txhim kho lub zog tsim. Tsis tas li ntawd, lawv feem ntau pom muaj nyob rau hauv cov khoom siv tuav, robotics, thiab txawm tias cov khoom siv kho mob, qhov chaw raug thiab kev tswj xyuas qhov tseem ceeb. Raws li kev lag luam evolve, qhov kev thov rau slewing nplhaib bearings txuas ntxiv mus, ua rau lawv yog ib qho tseem ceeb ntawm cov khoom siv niaj hnub engineering.

TSIS MUAJ.	d [mm]	D [mm]	B [mm]
VSI200944-N-VSP	840	1016	44.5
VSU200944-ZT-RL2	872	1016	56
VSU200944-ZT	872	1016	56
VSI200944-N	840	1016	44.5
TSW 200944	872	1016	56
VSI250855-N	710	955	71
TSO 250855	755	955	63
XSA140844-N	-	950.1	-
VLI200844-N-RL1	736	948	44.5
VLI200844-N-VSP	736	948	44.5
VLU200844-VSP	734	948	56
VLU200844-RR	734	948	56
VLI200844-N-RR	736	948	44.5
VLU200844-RL1	734	948	56
TSW 200844	734	948	56
VLI200844-N	736	948	44.5
VSU200844-RR	772	916	56
VSU200844-VSP-ZT	772	916	56
VSI200844-N	736	916	44.5
VSU200844-RL1	772	916	56
