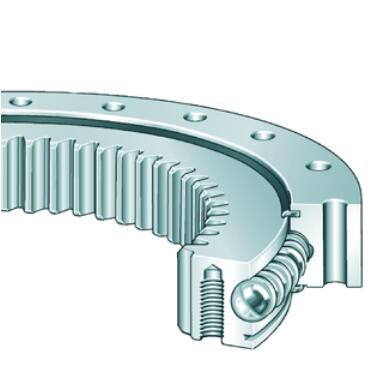

VSI200944-N
Main Dimensions & Performance Data
| d1 |
8 40mm |
Lub taub hau |
| T |
4.5mm ib |
Length centering puab nplhaib |
| H |
56mm ua |
Qhov siab |
| Da |
1, 016 mm |
Sab nraud txoj kab uas hla |
|
-0.7 hli |
Sab nraud txoj kab uas hla qis dua | |
|
0 hli |
Sab nraud txoj kab uas hla sab sauv kam rau ua | |
| ha |
44.5mm ib |
Dav sab nraud |
| hi |
44.5mm ib |
Dav sab hauv nplhaib |
| ≈m |
7 6kg |
Qhov hnyav |
Qhov ntev
| Di |
9 45,5mm |
Sab hauv txoj kab uas hla sab nraud |
|
0.7 hli |
Sab hauv txoj kab uas hla lub nplhaib sab sauv kam rau ua | |
|
0 hli |
Sab hauv txoj kab uas hla sab nrauv lub nplhaib qis dua kam rau ua | |
| La |
9 90mm |
Pitchcircle txoj kab uas hla kho qhov lub nplhaib sab nraud |
| na |
44 |
Tus naj npawb ntawm kho qhov nyob rau hauv lub nplhaib sab nraud |
| dB |
14 mm |
Kho bore |
| da |
9 42,5mm |
Sab nraud txoj kab uas hla puab nplhaib |
|
0 hli |
Sab nraud txoj kab uas hla puab lub nplhaib sab sauv kam rau ua | |
|
-0.7 hli |
Sab nraud txoj kab uas hla sab hauv lub nplhaib qis kam rau ua | |
| Li |
9 05mm |
Pitchcircle txoj kab uas hla kho qhov hauv lub nplhaib |
| dBi |
M12 |
Tread fixing bore |
| Gl |
20 mm |
Xov qhov tob kho qhov |
| ni |
44 |
Tus naj npawb ntawm kho qhov nyob rau hauv lub nplhaib puab |
| Fr zul |
181,700 N |
Max. radial load kho screws (kev sib txhuam xauv) |
| m |
8 hli |
Modul ntawm gearing |
| z |
107 |
Tus naj npawb ntawm cov hniav |
| d0 |
8 56mm |
Pitch voj voog txoj kab uas hla gearing |
| Fz norm |
31,400 N |
Max. Cov hniav quab yuam hauv paus qaug zog (ntawm qhov poob siab ntawm 1,2) |
| Fz mas |
46,700 N |
Max. cov hniav quab yuam tawm tsam cov hniav puas (ntawm qhov poob siab ntawm 1,35) |
Qhov kub thiab txias
| Tmin |
-25 degree |
Ua haujlwm kub min. |
| Tmax |
80 degree |
Ua haujlwm kub max. |
Kev suav lej
| Ca |
188,000 N |
Basic dynamic load ntsuam xyuas, axial |
| C0a |
1,520,000 N |
Basic static load ntsuam xyuas, axial |
| Cr |
170,000 N |
Basic dynamic load ntsuam xyuas, radial |
| C0r |
700,000 N |
Basic static load ntsuam xyuas, radial |
Slewing nplhaib bearings, tseem hu ua turntable bearings, yog cov tshwj xeeb teb bearings tsim los kom haum rau hnyav loads thaum tso cai rau du rotation ntawm ib tug ruaj axis. Ib qho ntawm lawv cov yam ntxwv txhais tau yog lawv txoj kab uas hla loj, uas ua rau lawv txhawb nqa ntau yam radial, axial, thiab lub sijhawm thauj khoom ib txhij. Feem ntau tsim los ntawm cov hlau zoo, cov kabmob no muaj cov qauv tsim tshwj xeeb uas feem ntau suav nrog cov iav sib xws, kev sib tw, thiab kev sib khi. Qhov no ua rau lawv tshwj xeeb tshaj yog haum rau cov ntawv thov uas xav tau siab precision thiab durability. Tsis tas li ntawd, slewing nplhaib bearings tuaj yeem hloov kho nyob rau hauv ntau qhov ntau thiab tsawg thiab kev teeb tsa kom tau raws li cov kev xav tau ntawm engineering, kom ntseeg tau tias kev ua haujlwm zoo nyob rau hauv ntau yam kev ua haujlwm.
Qhov zoo ntawm slewing nplhaib bearings muaj ntau heev, feem ntau lawv muaj peev xwm muab cov lus tsa suab txhim khu kev qha hauv qhov xav tau ib puag ncig. Lawv txoj kev tsim kho muaj zog tso cai rau lawv tiv taus qhov kub thiab txias, ua rau lawv zoo tagnrho rau cov tshuab hnyav, cranes, thiab excavators. Tsis tas li ntawd, tus tsim ntawm slewing rings enables txo kev sib txhuam thaum lub sij hawm ua hauj lwm, uas ua rau kom efficiency thiab prolongs lub lifespan ntawm cov khoom. Kev sib koom ua ke ntawm cov iav ncaj qha rau hauv cov kabmob tshem tawm qhov xav tau ntxiv cov iav hauv kev sib dhos, txo qhov hnyav tag nrho thiab ua kom yooj yim rau kev tsim engineering. Tsis tas li ntawd, lawv cov kev tswj xyuas qis ua rau txo qis kev ua haujlwm, uas yog qhov txiaj ntsig tseem ceeb rau kev lag luam uas vam khom rau kev ua haujlwm tas mus li.
Slewing nplhaib bearings nrhiav kev siv dav hauv ntau qhov kev lag luam, ua kom pom lawv ntau yam thiab ua haujlwm tau zoo. Hauv kev tsim kho, lawv tau siv hauv cranes thiab excavators kom du thiab precision-tswj txav. Nyob rau hauv cov cua zog sector, slewing rings ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm ntawm cov cua turbines, ua kom cov kev hloov pauv tsim nyog los txhim kho lub zog tsim. Tsis tas li ntawd, lawv feem ntau pom muaj nyob rau hauv cov khoom siv tuav, robotics, thiab txawm tias cov khoom siv kho mob, qhov chaw raug thiab kev tswj xyuas qhov tseem ceeb. Raws li kev lag luam evolve, qhov kev thov rau slewing nplhaib bearings txuas ntxiv mus, ua rau lawv yog ib qho tseem ceeb ntawm cov khoom siv niaj hnub engineering.
| TSIS MUAJ. | d [mm] | D [mm] | B [mm] |
| TSW 201094 | 1,022 | 1166 | 56 |
| VSI201094-N | 984 | 1166 | 44.5 |
| VSI251055-N-ZT | 910 | 1155 | 71 |
| VSU251055-VSP | 955 | 1155 | 63 |
| VSU251055-VSP-ZT | 955 | 1155 | 63 |
| VSI251055-N | 910 | 1155 | 71 |
| TSO 251055 | 955 | 1155 | 63 |
| VSI251055-N-VSP | 910 | 1155 | 71 |
| VSU250955-ZT | 855 | 1055 | 63 |
| TSO 250955 | 855 | 1055 | 63 |
| VSI250955-N | 810 | 1055 | 71 |
| VSU250955-VSP-ZT | 855 | 1055 | 63 |
| VLI200944-N-RR | 840 | 1048 | 44.5 |
| VLU200944-RL1 | 834 | 1048 | 56 |
| VLI200944-N | 840 | 1048 | 44.5 |
| TSW 200944 | 834 | 1048 | 56 |
| VLI200944-N-RL1 | 840 | 1048 | 44.5 |
| XSA140944-N-RR | - | 1046.1 | - |
| XSA140944-N | - | 1046.1 | - |
| VSI200944-N | 840 | 1016 | 44.5 |
